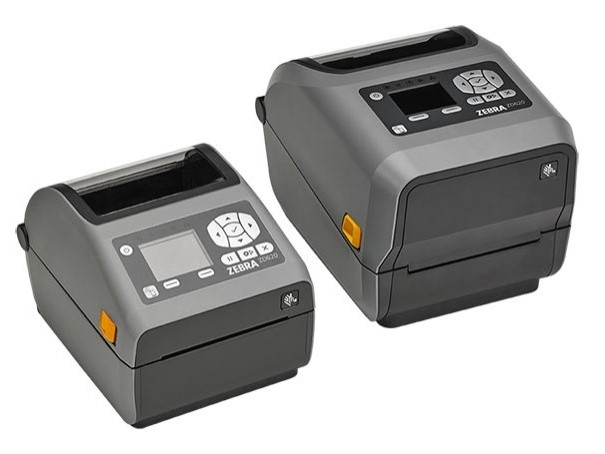

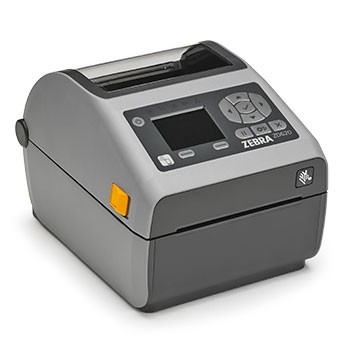

ZD620 Direct Thermal Desktop Label Printer
Item Code: ZD620d
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
Call for Price
Description
It’s easy to set up and configure the ZD620 with the optional 10-button user interface and color LCD. The display changes color when the printer is paused or in an error state, so users can instantly identify and resolve an issue before productivity is impacted
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Zebra |
| Manufacturer Part Number: | ZD460d |
| Product Name: | ZD620 Direct Thermal Desktop Label Printer |
| Product Type: | Desktop Label Printer |
| Standard Features | |
| Resolution: | 203 dpi/8 dots per mm |
| Interface: | USB |
| Memory: | 512 MB Flash; 256 MB SDRAM |
| Maximum Print Width: | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed: | 8 in./203 mm per second (203 dpi) |
| Media Sensors: | Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor |
| Media and Ribbon Characteristics | |
| Maximum Label Length: | 39.0 in./991 mm |
| Media Width: | 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size: | Maximum outer diameter: 5.00 in./127 mm |
| Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. | |
| (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) | |
| and 3.0 in. (76.2 mm) using optional adapters | |
| Media Thickness: | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only |
| Media Types: | Roll-fed or fan-fold, die cut or continuous with |
| or without black mark, tag stock, continuous | |
| receipt paper, wristbands, linerless media* | |
| * For use only with linerless printer model | |
| Operating Characteristics | |
| Operating Temperature: | 40° to 105° F/4.4° to 41° C |
| Storage Temperature: | -40° to 140° F/-40° to 60° C |
| Operating Humidity: | 10% to 90% non-condensing |
| Storage Humidity: | 5% to 95% non-condensing |
| Electrical: | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified |
| Physical Characteristics | |
| Colour: | Black |
| Length: | 8.7 in./221 mm |
| Width: | 7.0 in./177 mm |
| Height: | 5.9 in./151 mm |
| Weight (Body): | 3.6 lb/ 1.6 kg |
Included Items
Included Items
| Package Contents: |
|
|
|
|
|
|
