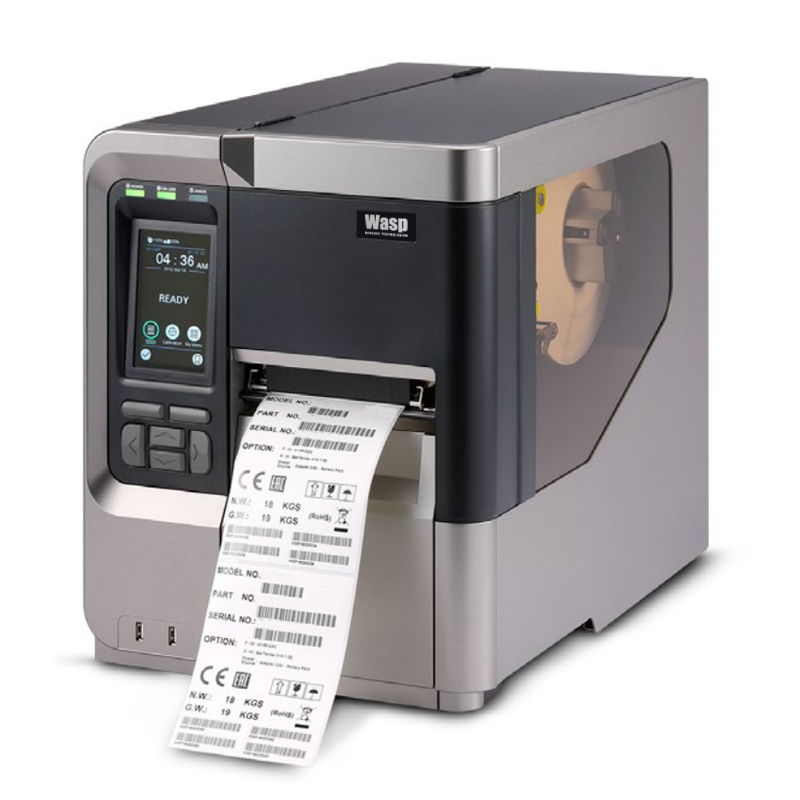

Wasp WPL618 Industrial Barcode Printer

Item Code: W-633809003219

Be the first to Review this Product

Specifications (PDF): Download Datasheet

Need Support: Click Here

$4,702.00 ex GST

Description

Warranty: 2 Years

The Wasp WPL618 industrial barcode printer is the fastest, most rugged and highest-performing industrial label printer in the Wasp printer line – delivering advanced print speeds, durable construction, and high-volume barcode printing in mission-critical applications. Maximize efficiency and throughput with print speeds of up to 18 inches per second, supported by 512 MB Flash and 512 MB SDRAM memory.

Cost Effective and Integrated Solutions

Ready to Use, right out of the box software

Implementation, Training and Support

Hundreds of Installs Australia wide

Features

Basic Information
Brand Name:	Wasp Barcode Technologies
Manufacturer Part Number:	W-633809003219
Product Name:	Wasp WPL618 Industrial Barcode Printer
Product Type:	Desktop Barcode Printer

Standard Features
Printing method:	Thermal Transfer & Direct Thermal
Resolution:	203 dpi (8 dots / mm)
Maximum Print Speed:	18 IPS (457 mm per second)
Maximum print width:	4.09 in (104 mm)
Maximum print length:	1,000 in (25,400 mm)

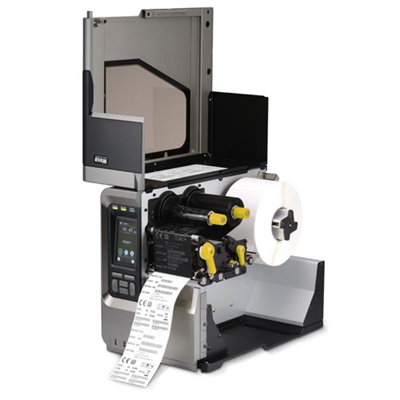

Enclosure:	Die-cast based print mechanism and frame/Aluminum cover with large clear media view window
Processor:	32-bit RISC CPU
Memory:	512 MB Flash memory
	512 MB SDRAM
	microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Power:	Internal universal switching power supply
	Input: AC 100-240V, 4-2A, 50-60Hz
	Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
Sensors:	Gap transmissive sensor (position adjustable)
	Black mark reflective sensor (position adjustable)
	Head open sensor
	Ribbon end sensor
	Ribbon encode sensor
	Media capacity sensor
LCD:	16 bits Color, 480 x 272 pixel, with backlight, Resistive Touch Screen
Operation switch, button, LED:	1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select)
Dimensions:	11.81 in (W) x 15.47 in (H) x 20.08 in (D) / 300 mm (W) x 393 mm (H) x 510 mm (D)
Net weight:	39.68 lbs. (18 kg)
Printer Language:	WPL (Compatible with EPL, ZPL, ZPL II)
Label Roll Capacity:	8 in OD (203.2 mm)

Operational Characteristics
Interface:	USB 2.0, RS-232, Internal Ethernet – 10/100 Mbps
Environment Condition:	Operation: 41 ~ 104°F, 25 ~ 85% non-condensing
	Storage: -40 ~ 140°F, 10 ~ 90% non-condensing
Certifications:	FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CB, BIS, EAC, ENERGY STAR®
Environmental Concern:	Comply with RoHS, WEEE

Media & Ribbon Characteristics
Media type:	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width:	0.78 in ~ 4.49 in (20 mm ~ 114 mm)
Media thickness:	2.99 ~ 12.01 mil (0.076 mm ~ 0.305 mm)
Media core diameter:	3 in (976.2 mm)
Label length:	0.1 in ~ 1,000 in (3 mm ~ 25,400 mm)
Ribbon:	1,968 ft. m long, max. OD 3.54 mm, 1 in. core (ink coated outside or inside)
Ribbon Width:	1.57 in ~ 4.52 in (40 mm ~ 115 mm)

Fonts, Graphics and Symbologies
1D Barcode symbologies:	Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D Barcode Symbologies:	PDF-417, Maxicode, DataMatrix, QR code, Aztec
Internal fonts:	8 alpha-numeric bitmap fonts
	Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Font rotation:	0, 90, 180, 270 degree
