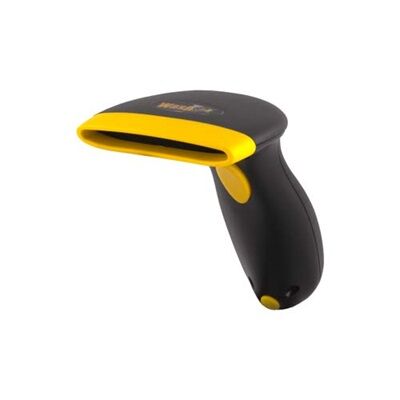

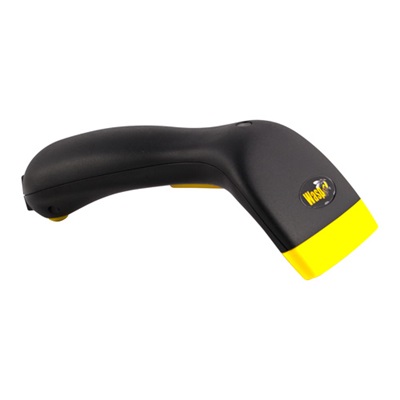

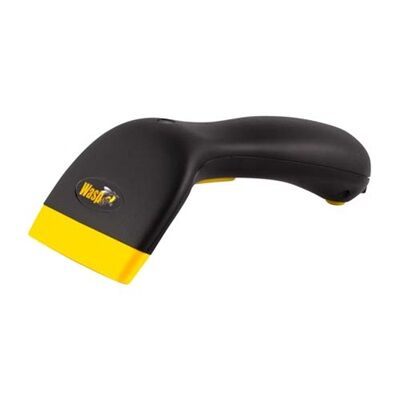

WCS3900 CCD Barcode Scanner
Item Code: W-633808091040
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$238.00 ex GST
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633808091040 |
| Product Name: | Wasp WCS3900 CCD Barcode Scanner (USB) |
| Product Type: | CCD Barcode Scanner |
| Optical Features | |
| Light source: | 660 nm red visible LED |
| Optical sensor: | 2088 linear imager |
| Scanning width: | 3.25” (8.25 cm) |
| Depth of field: | Contact to 1” (0 cm to 25 cm) |
| Scan rate: | 45 scans/sec |
| Decode rate: | 100 scans/sec |
| Technical Information | |
| 1D (Linear) Symbologies Read: | Codabar, Code 3 of 9 (Code 39), Code 3 of 9 Full ASCII, Code 11, Code 32, Code 93, Code 128 (including UCC/EAN128), EAN/JAN-8 (plus supplements), EAN/JAN-13 (plus supplements), Industrial 2 of 5 (25), Interleaved 2 of 5, ISBN,Matrix 25, MSI Plessey, UPC-A (plus supplements), UPC-E (plus supplements), China Post Code, RSS14, Telepen |
| Power Characteristics | |
| Operating voltage: | +5 VDC ±5% |
| Current consumption: | Idle <30 mA, Operating <95 mA |
| Environmental Characteristics | |
| Operating temperature: | 32°F to 122°F (0°C to 50°C) |
| Storage temperature: | -4°F to 140°F (-20°C to 60°C) |
| Relative humidity: | 20% to 80% (non-condensing) |
| Physical Characteristics | |
| Dimensions: | 1.06” H x 7.40” L x 3.62” W (2.7 cm H x 18.8 cm L x 9.2 cm W) |
| Net weight: | 4.4 oz (125 g) without cable |
| Cable: | 6 ft. |
| Housing: | ABS |
| Miscellaneous | |
| Safety: | Conforms FCC Class A and CE requirements |
