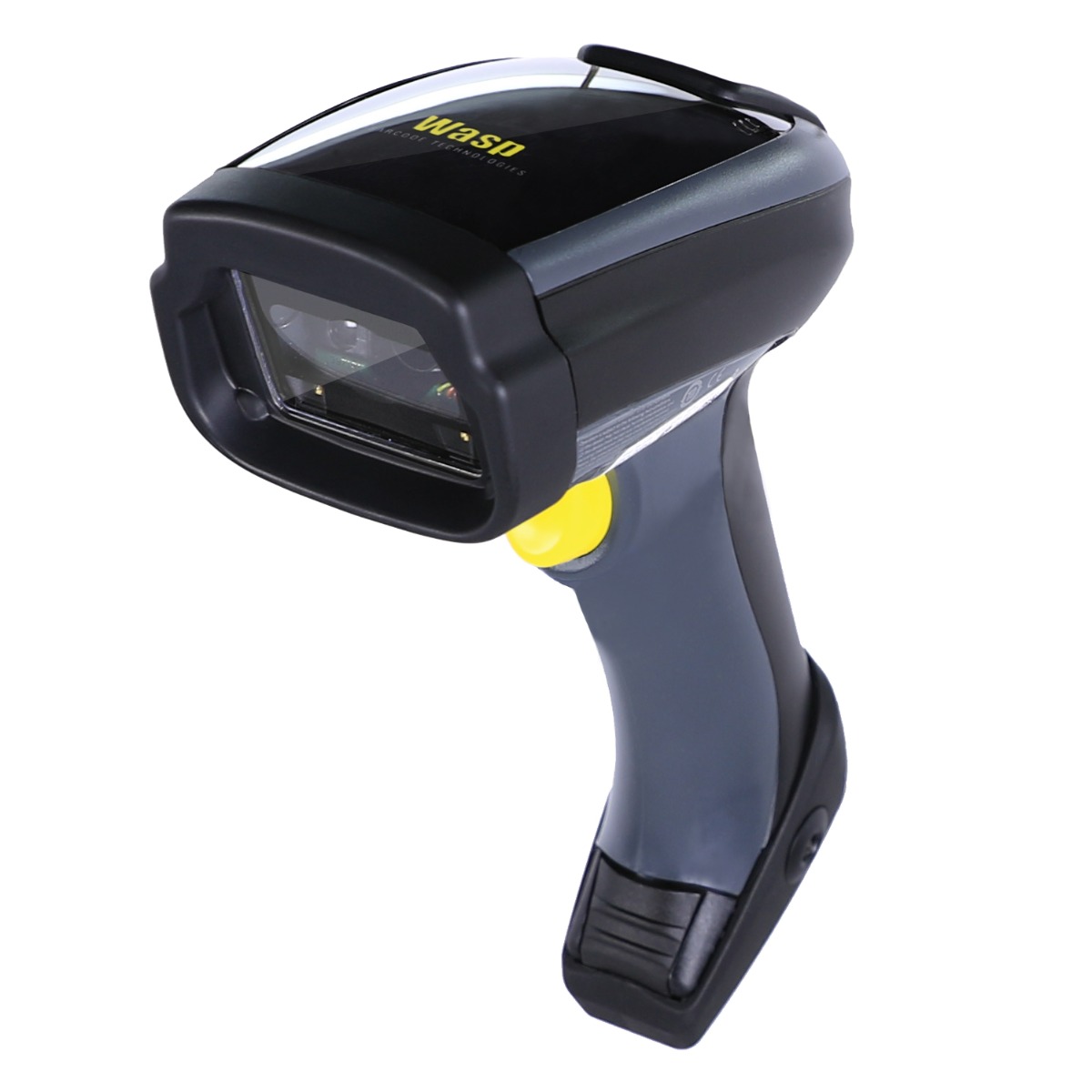

Wasp WWS750 2D Wireless Barcode Scanner
Item Code: W-633809002861
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$1,695.00 ex GST
Description
The Wasp WWS750 possesses advanced features to excel in the most demanding environments: “Liquid lens” that adapts and focus at different distances; this provides a versatile optic that is able to fulfill any scanning need with a single scanner.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633809002861 |
| Product Name: | Wasp WWS750 2D Wireless Barcode Scanner |
| Product Type: | Wirless Industrial 2D Scanner |
| Optical Features | |
| Light source: | Aiming: 630 – 680 nm VLD |
| Illumination: White LEDs | |
| Imager sensor: | 864 x 544 |
| Resolution: | 1D Codes: 4 mil |
| 2D Codes: 7.5 mil | |
| Scan Angle: | Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40° |
| Print Contrast Ratio: | 15% |
| Depth of Field: | 4 mils: 6.0 to 17.0 cm / 2.3 to 6.7 in 7.5 mils Data Matrix: 9.0 to 12.0 cm / 3.5 to 4.7 in 10 mils Data Matrix: 4.0 to 18.0 cm / 1.5 to 7.0 in 10 mils PDF417: 2.0 to 25.0 cm / 0.8 to 9.8 in 13 mils: 4.0 to 45.0 cm / 1.5 to 17.7 in 20 mils: 4.0 to 55.0 cm / 1.5 to 21.6 in 40 mils: 4.0 to 85.0 cm / 1.5 to 33.4 in |
| Technical Information | |
| 1D (Linear) Symbologies Read: | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |

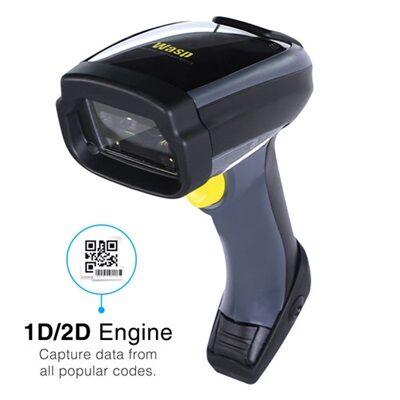

| 2D Symbologies Read: | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code. |
| Postal Code Read: | Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post. |
| Stacked Codes: | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites. |

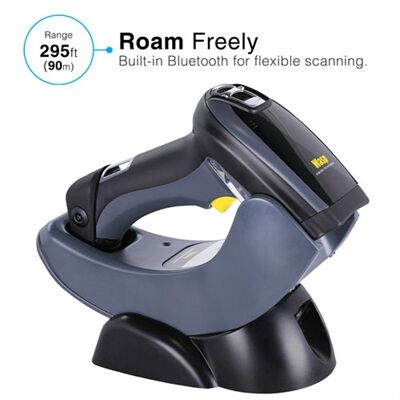

| Wireless: | Bluetooth 3.0 Certified Class 1 |
| Interface: | USB: OEM USB; USB COM; |
| Power Characteristics | |
| Operating Voltage: | 150 mA @ 10 VDC |
| Working Current: | Charging (Typical): External Power: 800 mA @ 10 VDC; POT: 500 mA @ 5 VDC |
| Input Voltage: | External Power: 10-30 VDC; POT: 5 VDC +/- 10% |
| Environmental Characteristics | |
| Operating temperature: | -4~122 °F 9 (-20~50 °C) |
| Storage temperature: | -40~158˚F (-40~70˚C) |
| Humidity: | 95% (Non-condensing) |
| Drop Durability: | 50 drops from 6.6 ft. onto a concrete surface (2.0 m) |

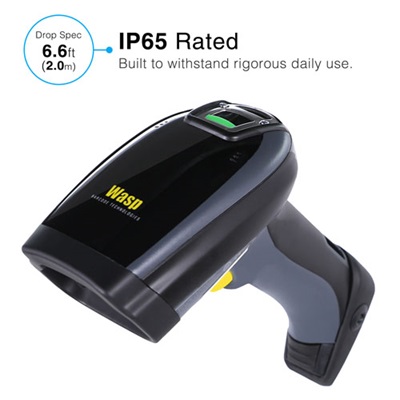

| Sealing: | IP65 |
| Ambient Light: | 0 – 100,000 lux |
| Physical Characteristics | |
| Dimensions: | Scanner: 8.3 x 4.3 x 2.9 in (21.2 x 11.0 x 7.4 cm) |
| Net weight: | Scanner: 13.4 oz. (380 g.) |
| Color: | Yellow/Black |
| Trigger: | Scan Button |
| Indicator: | Beeper (Adjustable Tone and Volume); three green lights and loud beeper for good-read feedback. |
| Regulatory: | |
| ESD Protection: | 20 KV |
| EMC: | FCC Part15 CE EC-100_02 |
| Safety Approval: | CDRH Class II: IEC 60825 Class 2; IEC 62471 Class 1 LED |
| Environmental: | WEEE, RoHS, R.E.A.C.H. |
Industry Use
Industry Use
- Warehousing
- Logistics and Distribution
- Manufacturing
Included Items
Included Items
Package Contents:
- WWS750 2D barcode scanner
- WWS750 adjustable radio/recharging base
- Rechargeable lithium-ion battery
- 2-year warranty (Optional WaspProtect warranty available)
- Scanner programming guide
