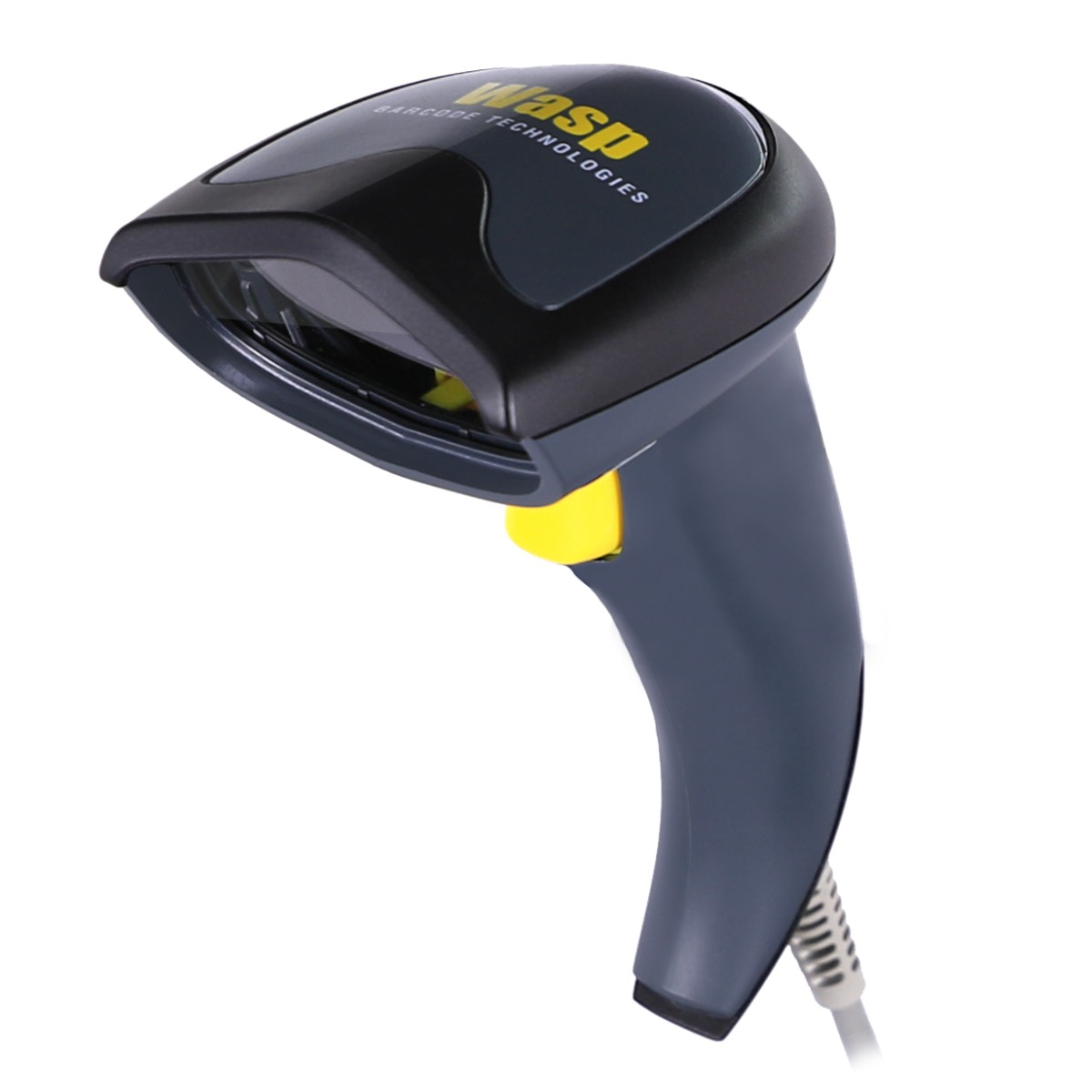

Wasp WDI4200 2D USB Barcode Scanner
Item Code: W-633809002847
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$561.00 ex GST
Description

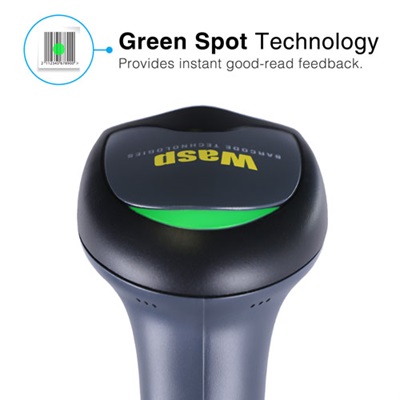

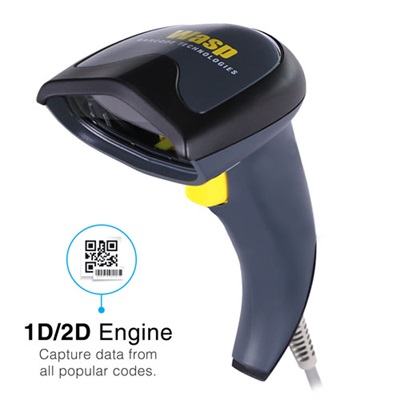

The Wasp WDI4200 2D Barcode Scanner is compact, lightweight, ergonomic and efficient. It is able to read long and truncated 1D barcodes and larger 2D barcodes from close distances and from different angles, whether printed or displayed on a smartphone or tablet. It also features green spot technology for visual good-read feedback and a beeper for audio good-read feedback, which can be silenced when needed.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633809002847 |
| Product Name: | Wasp WDI4200 2D USB Barcode Scanner |
| Product Type: | Corded 2D Scanner |
| Optical Features | |
| Light source: | Aiming: 1 Blue LED |
| Illumination: White LED 350-770 nm | |
| Imager sensor: | Field of View: 48 x 37º (H x V) |
| Wide VGA: 640 x 480 pixels | |
| Motion Tolerance: | 20 IPS |
| Resolution: | Code 39: 4 mils: 0.102 mm |
| PDF417: 6.6 mils: 0.168 mm | |
| QR/Data Matrix: 7.5 mils: 0.191 mm | |
| Scan Angle: | Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 65° |
| Print Contrast Ratio: | 20% |
| Field of View: | 48° H x 37° V |
| Depth of Field: | Code 39: 5 mils: 0.5 to 12.5 cm / 0.2 to 4.9 in EAN/UPCA: 13 mils: 0.5 to 30.0 cm / 0.2 to 11.8 in PDF417: 6.6 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in Data Matrix: 10 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in QR: 20 mils: 1.0 to 14 cm / 0.4 to 5.5 in |
| Technical Information | |
| 1D (Linear) Symbologies Read: | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Symbologies Read: | Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Postal Code Read: | Australian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| Stacked Codes: | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Power Characteristics | |
| Input voltage: | 5 VDC +/- 10% |
| Working Current: | 170 mA @ 5 VDC |
| Standby Current: | 90 mA @ 5 VDC |
| Environmental Characteristics | |
| Operating temperature: | 32~122˚F (0~50˚C) |
| Storage temperature: | -4~158˚F (-20~70˚C) |
| Humidity: | 0%~95%RH (Non-condensing) |

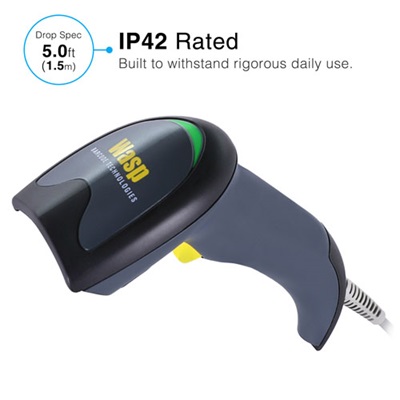

| Drop Durability: | 5 ft. (1.5 m) |
| Sealing: | IP42 |
| Ambient Light: | Up to 92,000 lux |
| Physical Characteristics | |
| Dimensions: | 2.8 x 6.7 x 2.6 in (7.1 x 17.1 x 6.6 cm) |
| Net weight: | 4.2 oz. (120 g.) |
| Color: | Black |
| Connector: | USB |
| Trigger: | Scan Button |
| Regulatory | |
| ESD Protection: | 16 KV |
| EMC: | FCC Part15B ClassB |
| CE EC-485_0 | |
| Safety Approval: | IEC62471 |
| Environmental: | WEEE, RoHS |
Included Items
Included Items
Package Contents:
- WDI4200 2D Barcode Scanner
- 6’ USB cable
- Scanner programming guide
- 2-year warranty (Optional WaspProtect warranty available
Industry Use
Industry Use
- Retail
- Banking
- Manufacturing
- Government
- Education
- Healthcare
