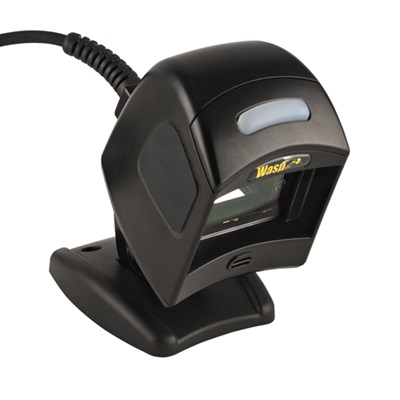

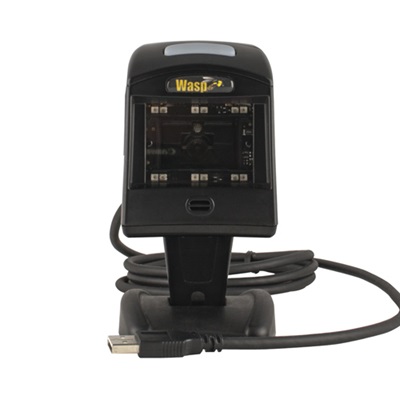

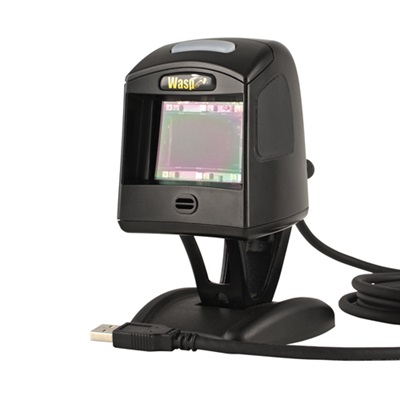

Wasp WPS200 Omni Scanner With Stand and USB Cable
Item Code: W-633808121730
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$908.25 ex GST
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633808121730 |
| Product Name: | Wasp WPS200 Omni Scanner With Stand and USB Cable |
| Product Type: | Omni-Directional Barcode Scanner |
| Optical Features | |
| Light source: | 650 nm visible laser diode |
| Depth of field (1D): | 0” to 7” @ 13 mil |
| Depth of field (2D): | 0” to 5” @ 24 mil (Data Matrix) |
| Width of field: | 1.6” (40 mm) @ face |
| Nominal working range: | 6.5” (163 mm) @ 8.5” away, 5 mil: (38%) 1 to 2.5 in. (2.5 to 6.4 cm), 7.8 mil: (60%) 0 to 6 in. (0 to 15.2 cm), 10.4 mil: (80%) 0 to 7.5 in. (0 to 19 cm), 13 mil: 8.5 in. (0 to 21.6 cm) (100%) |
| Resolution: | 5 mil |
| Scan rate: | 1768 scans/second, 20 interlocking lines |
| Technical Information | |
| 1D (Linear) Symbologies Read: | Code 128, UCC/EAN 128, ISBT 128, Code 39, Trioptic Code 39, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Code 93, Code 11, Codabar, MSI, RSS 14, RSS Limited and RSS Expanded,UPC-A, UPC/EAN/JAN |
| 2D Symbologies Read: | Aztec Code, Data Matrix, MaxiCode, QR Code, PDF417, Micro PDF417 |
| Power Characteristics | |
| Supply voltage: | 1.4 watts, 5.0 VDC ± 10% Does not include cable |
| Normal current: | 275mA |
| Environmental Characteristics | |
| Operating temperatures: | 32º to 104ºF (0º to 40º C) |
| Storage temperatures: | -40º to 158ºF (-40º to 70ºC) |
| Relative humidity: | 5% to 95% non-condensing |
| Mechanical shock: | Withstands repeated 4-ft. (1.2-m) drops to concrete |
| Electrical safety: | Certified to UL 1950, CSA C22.2 No. 950 |
| Ambient light immunity: | Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, incandescent, mercury vapor and sodium vapor: 450 (4,844 lux) Sunlight: 8,000 foot-candles (86,111 lux) foot-candles |
| EMC: | CISPR B, FCC B, EN60825 |
| Physical Characteristics | |
| Dimension: | 5.51” H x 3.49” W x 2.96” D (w/o stand), 6.13” H x 3.93” W x 3.93” D (with stand) |
| Weight: | 13.6 oz. (385.6 g) including stand |
| Cable: | USB 6’ |
Included Items
Included Items
Package Contents:
- Wasp WPS200 Omni-Directional Barcode Scanner with integrated stand
- USB cable
- Scanner programming guide
Industry Use
Industry Use
- Retail
- Warehousing
- Healthcare
