Opticon 3201 Laser Scanner
Item Code: OPR3201-BK-USB+STD
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$173.00 ex GST
Description

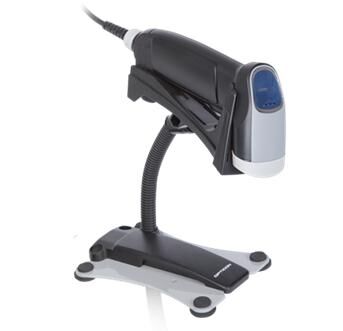

Opticon 3201 Laser Scanner is a lightweight stable barcode scanner with pistol grip and auto trigger stand which delivers reliable scanning performance. Its fast and accurate reading performance when barcodes are not clear makes it highly reliable.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Opticon |
| Manufacturer Part Number: | OPR3201-BK-USB+STD |
| Product Name: | Opticon 3201 Laser Scanner |
| Product Type: | Handheld Laser Scanner |
| Interfaces/Ports | |
| Host Interface: | USB |
| Technical Information | |
| Barcode Dimension: | 1D and 2D |
| Barcode (1D) Codes: | JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
| 2D Codes: | Composite codes, MicroPDF417, PDF417 |
| Postal Codes: | Chinese Post, Korean Postal Authority code |
| Light Source: | 650 nm visible laser diode |
| Scan Method: | Bi-directional scanning |
| Scan Rate: | 100 scans/sec |
| Trigger Mode: | Manual, auto-trigger, stand detection |
| Reading Pitch Angle: | -35 to 0˚, 0 to +35˚ |
| Reading Skew Angle: | -50 to -8˚, +8 to +50˚ |
| Reading Tilt Angle: | -20 to 0˚, 0 to +20˚ |
| Minimum Resolution at PCS 0.9: | 0.127 mm / 5 mil |
| Min. PCS Value: | 0.35 |
| Depth of Field: | At PCS 0.9, Code 39, 40 – 400 mm / 1.57 – 15.75 in (1.0 mm / 39 mil), 20 – 300 mm / 0.79 – 11.81 in (0.5 mm / 20 mil), |
| 20 – 200 mm / 0.79 – 7.87 in (0.25 mm / 10 mil), 20 – 100 mm / 0.79 – 3.94 in (0.15 mm / 6 mil), 30 – 70 mm / 1.18 – 2.76 in (0.127 mm / 5 mil) | |
| Miscellaneous | |
| Product Compliance: | CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
| Laser Classification: | Class 2 according to IEC 60825-1 |
| Vibration Test: | 10 – 100 Hz with 2G for 1 hour |
| Protection Rate: | IP42 |
| Drop Resistance: | 1.5 m / 5 ft drop onto concrete surface |
| Physical Characteristics | |
| Colour: | Black |
| Dimensions(W x H x D): | 56 x 149 x 109 mm / 2.20 x 5.87 x 4.29 in |
| Dimensions Stand(W x H x D): | 146 x 106 x 295 mm / 5.75 x 4.17 x 11.61 in (excl. scanner) |
| Weight (Body): | Ca. 80 g / 2.8 oz (excl. cable) |
| Weight (Stand): | 385 g / 13.58oz |
| Power Description | |
| Voltage Requirement: | 5V ± 10% |
| Current Consumption: | Max. 200 mA |
Included Items
Included Items
| Package Contents: |
|
|
|
