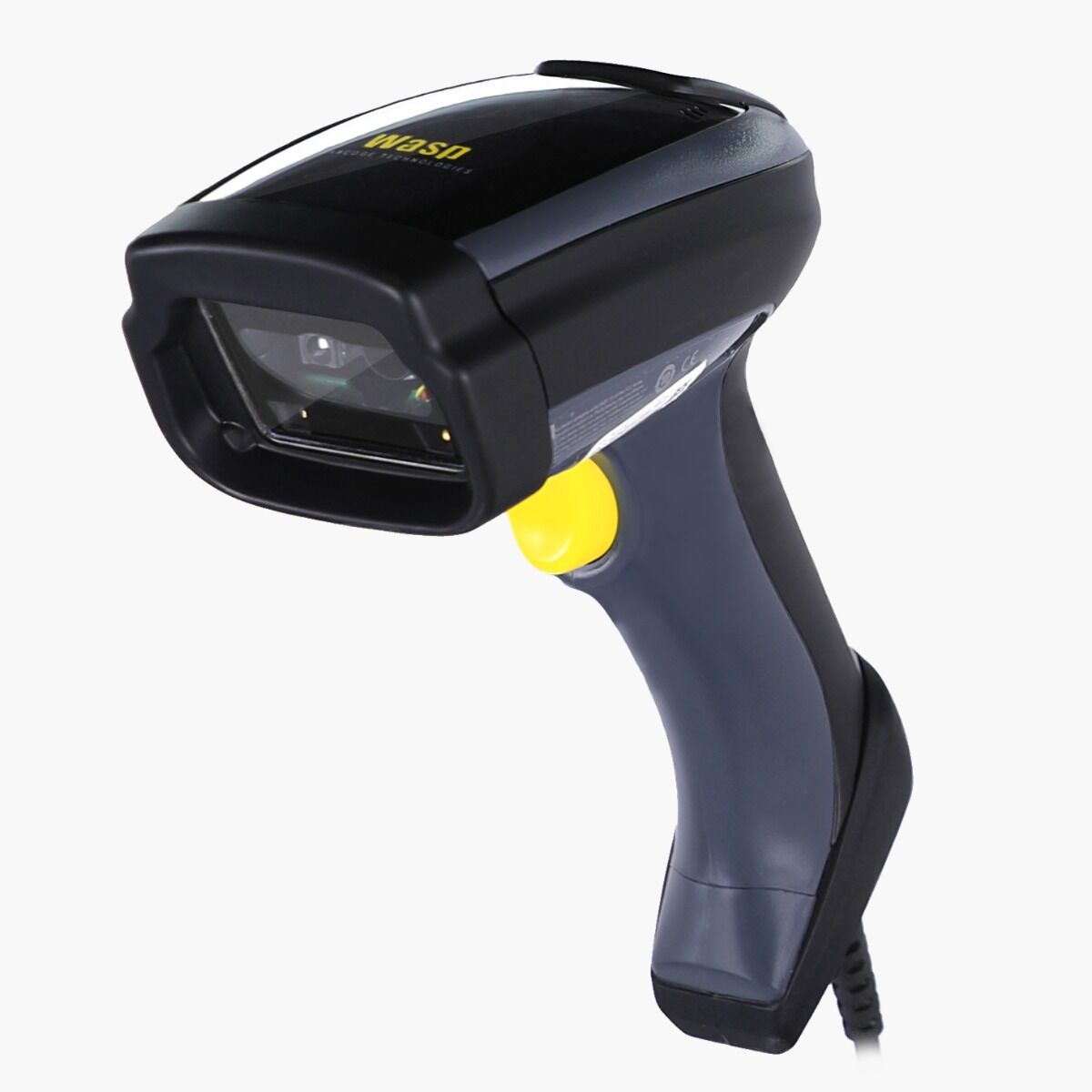

Wasp WDI7500 Industrial 2D Barcode Scanner with USB cable
Item Code: W-633809002830
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$1,033.00 ex GST
Description

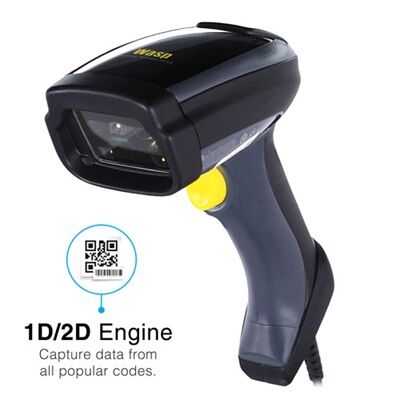

The Wasp WDI7500 2D USB barcode scanner is a preferred scanner because of its omnidirectional reading capability which provides a scanner that is able to read any kind of 1D or 2D barcodes, regardless of the orientation, from contact to over 3.3 ft. depending on the barcode resolution.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633809002830 |
| Product Name: | Wasp WDI7500 Industrial 2D Barcode Scanner with USB cable |
| Product Type: | Industrial 2D Scanner |
| Optical Features | |
| Light source: | Aiming: 630 – 680 nm VLD |
| Illumination: White LED 350 – 770 nm | |
| Imager sensor: | 864 x 544 |
| Resolution: | 1D Codes: 4 mil |
| 2D Codes: 7.5 mil | |
| Scan Angle: | Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40° |
| Print Contrast Ratio: | 15% |
| Depth of Field: | 4 mils: 6.0 to 17.0 cm / 2.3 to 6.7 in 13 mils: 4.0 to 45.0 cm / 1.5 to 17.7 in 20 mils: 4.0 to 55.0 cm / 1.5 to 21.6 in 40 mils: 4.0 to 85.0 cm / 1.5 to 33.4 in 10 mils PDF417: 2.0 to 25.0 cm / 0.8 to 9.8 in 7.5 mils Data Matrix: 9.0 to 12.0 cm / 3.5 to 4.7 in 10 mils Data Matrix: 4.0 to 18.0 cm / 1.5 to 7.0 in |
| Technical Information | |
| 1D (Linear) Symbologies Read: | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Symbologies Read: | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code |
| Postal Code Read: | Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post |
| Stacked Codes: | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Power Characteristics | |
| Input voltage: | 5 VDC +/- 10% |
| Working Current: | 335 mA @ 10 VDC |
| Standby Current: | 180 mA @ 10 VDC |
| Environmental Characteristics | |
| Operating temperature: | -4~122˚F (-20~50˚C) |
| Storage temperature: | -40~158˚F (-40~70˚C) |
| Humidity: | 0%~95% (Non-condensing) |
| Drop Durability: | 6.6 ft. (2.0 m) |

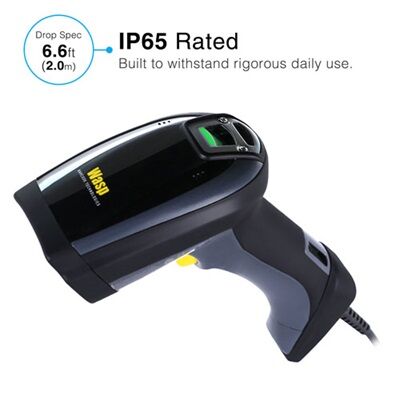

| Sealing: | IP65 |
| Ambient Light: | 0 – 100,000 lux |
| Physical Characteristics | |
| Dimensions: | 8.3 x 4.3 x 2.9 in (21.2 x 11.0 x 7.4 cm) |
| Net weight: | 11.6 oz. (330 g.) |
| Colour: | Yellow/Black |
| Interface: | USB |
| Trigger: | Scan Button |

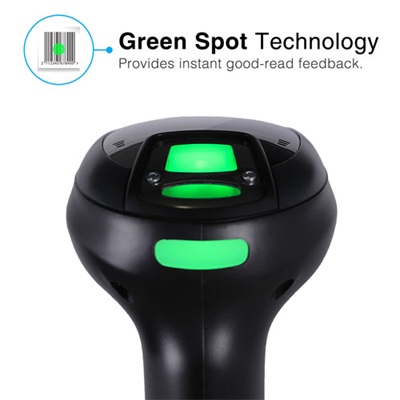

| Indicator: | Beeper, three green lights technology and loud beeper for good-read feedback, green spot on the code, dual good read LEDs |
| Regulatory: | |
| ESD Protection: | 20 KV |
| EMC: | FCC Part15 ClassB |
| CE EC-092_3 | |
| Safety Approval: | IEC62471 Class 1 LED |
| Environmental: | WEEE, RoHS, R.E.A.C.H. |
Included Items
Included Items
- WDI7500 2D Barcode Scanner
- 6’ USB cable
- Scanner programming guide
- 2-year warranty (Optional WaspProtect warranty available)
Industry Use
Industry Use
- Warehousing
- Logistics and Distribution
- Manufacturing
