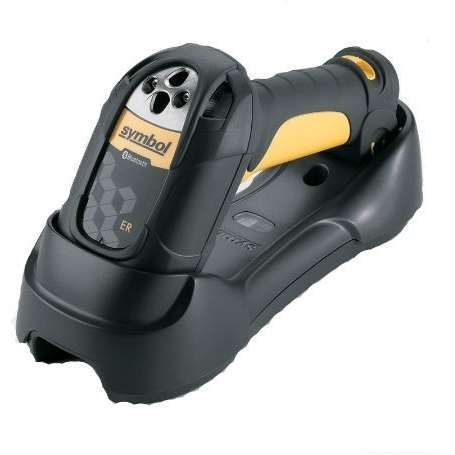

Zebra LS3578 ER & Bluetooth Cordless Scanner Kit

Item Code: LS3578-ERBU0100IR

Specifications (PDF): Download Datasheet

Need Support: Click Here

$1,500.00 ex GST

Description

The LS3578 ER & Bluetooth Cordless Scanner Kit designed for use in the yard, warehouse, distribution centre. It’s onboard Bluetooth connectivity can scan all 1D barcodes from anywhere. This rugged scanner reads labels from distances ranging from .25 inches to 45 feet.

Quality, Efficiency, Service and Reliability

Customer Care is not a department, it is our attitude

We won’t keep you waiting when you need help

Wide range of innovative solutions and top brands

Features

Basic Information
Brand Name:	Zebra
Manufacturer Part Number:	LS3578-ERBU0100IR
Product Name:	LS3578 ER & Bluetooth Cordless Scanner Kit
Product Type:	Rugged Bluetooth Scanner

Performance Characteristics
Scanner type:	Retrocollective
Light source:	650 nm visible laser diode
Scan repetition:	36 scans per second typical
Minimum element width:	7.5 mil (0.191 mm)
Nominal working distance:	See decode zone
Print contrast:	25% minimum reflective difference
Symbologies Read:	UPC.EAN, UPC.EAN with Supplemental, GS1-128 (formerly UCC/EAN 128), JAN 8 & 13, Code 39,Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, GS1DataBar (formerly RSS)

Power Characteristics
Battery:	2200 mAh Lithium Ion Battery
Battery charge time:	Fully charged (100%) in 3 hours

Environmental Characteristics
Operating Temp:	-4˚ to 122˚F (-20˚ to 50˚C)
Storage temperature:	-40˚ to 140˚F (-40˚ to 60˚C)
Humidity:	5% to 95% relative humidity, noncondensing
Sealing;	Sealed to IP65 specifications
Drop specifications:	Unit functions normally after 50 drops to concrete from 6.5 ft. (2m)

Physical Characteristics
Dimensions:	7.34 in. L x 4.82 in. W x 2.93 in. D (18.65 cm H x 12.25 cm W x 7.43 cm D)
Net weight:	14.8 oz. (420 gm)
Color	Twilight Black and Yellow

Miscellaneous
Input transient protection:	IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI:	FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori
Laser safety:	IEC825-1 Class 2

Radio Specification
Radio:	Bluetooth, Class 2, Version 1.2, Serial port and HID Profiles
Frequency:	2.402 to 2.480 GHz adaptive frequency hopping (co-existence with 802.11 wireless networks)
Data rate:	720 kbps
Radio Range:	Up to 300 ft. (100m) direct line of sight in the open air; the typical indoor cordless range is 100 ft. (33m), but will vary depending upon the environment; see Bluetooth Radio Performance Technical Brief for more information
