Wasp WWS650 2D Wireless Barcode Scanner
Item Code: W-633809002885
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$695.00 ex GST
Description

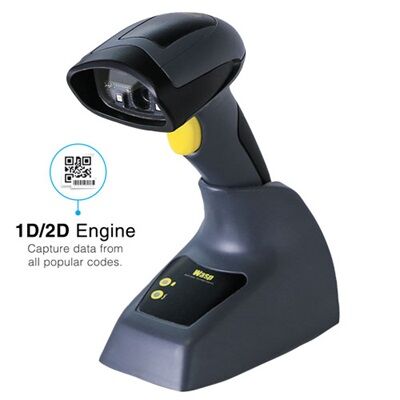

The Wasp WWS650 2D Wireless Barcode Scanner is as affordable as it is reliable. This multi-tasking, wireless barcode scanner is capable of reading codes on mobile phones and other reflective devices. It’s Bluetooth capabilities allow it to transmit data to the host from up to 82 feet from the base or to any embedded Bluetooth device such as laptops, tablets, or smartphones.
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633809002885 |
| Product Name: | Wasp WWS650 2D Wireless Barcode Scanner |
| Product Type: | Wireless 2D Scanner |
| Optical Features | |
| Light source: | Aiming: 2 Blue LED’s; |
| Illumination: Red LED 610 – 650 nm | |
| Imager sensor: | Wide VGA: 752 x 480 pixels |
| Resolution: | 0.102 mm / 4 mils (Linear Codes) |
| Scan Angle: | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 60° |
| Print Contrast Ratio: | 25% |
| Depth of Field: | Code 39 5 mils: 0.5 to 15.0 cm / 0.2 to 5.9 in EAN/UPCA 13 mils: 0.5 to 35.0 cm / 0.2 to 13.8 in PDF417 6.6 mils: 2.0 to 15.0 cm / 0.8 to 5.9 in Data Matrix 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in |
| Technical Information | |
| 1D (Linear) Symbologies Read: | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Symbologies Read: | Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Postal Code Read: | Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| Stacked Codes: | EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Wireless: | Bluetooth 3.0 Certified Class 2 |
| Interface: | USB |
| Power Characteristics | |
| Battery Type: | Lithium-Ion 1400 mAh |
| Charging Time | External Power: < 3 hrs. @ 12 VDC (30,000+ reads per Charge) |
| Input Voltage: | 4.75 – 14 VDC |
| Environmental Characteristics | |
| Operating temperature: | 32 to 122 °F (0 to 50 °C) |
| Storage temperature: | -40 to 158 °F (-40~70˚C) |
| Humidity: | 5- 95% (Non-condensing) |
| Drop Durability: | Withstands repeated drops from 5.0 ft. (1.50 m) onto a concrete surface |

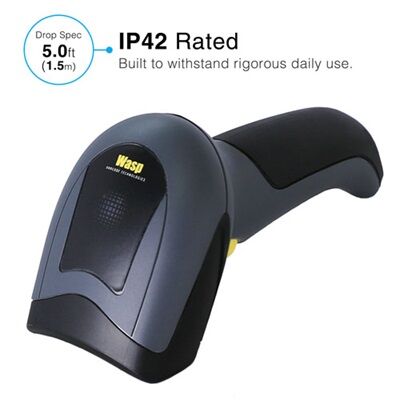

| Sealing: | IP42 |
| Ambient Light: | 0 – 100,000 lux |
| Physical Characteristics | |
| Dimensions: | 6.4 x 3.6 x 1.6 in / 16.3 x 9.1 x 4.1 cm |
| Net weight: | Scanner: 7.1 oz. (200 g.); Base/Charger 8.1 oz. (230 g) |
| Color: | Gray/Black/Yellow |
| Trigger: | Scan Button |

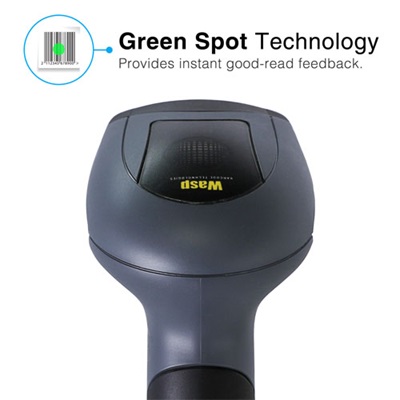

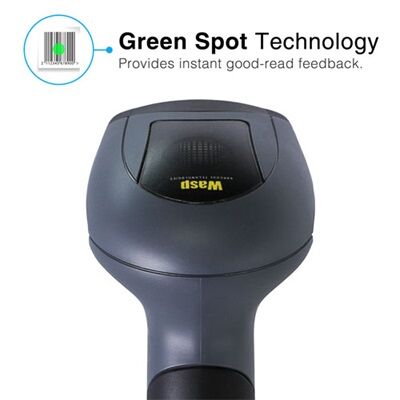

| Indicator: | Beeper (Adjustable Tone and Volume); ‘Green Spot’ Good Read Feedback and Good Read LED. |
| Regulatory | |
| ESD Protection: | 16 kV |
| EMC: | FCC Part15 CE EC-113_01 |
| Environmental: | WEEE and RoHS. |
Included Items
Included Items
Package Contents:
- WWS650 2D barcode scanner
- WWS650 stand
- Rechargeable lithium-ion battery
- 2-year warranty (Optional WaspProtect warranty available)
- Scanner programming guide
Industry Use
Industry Use
- Retail
- Warehousing
- Logistics and Distribution
- Banking
