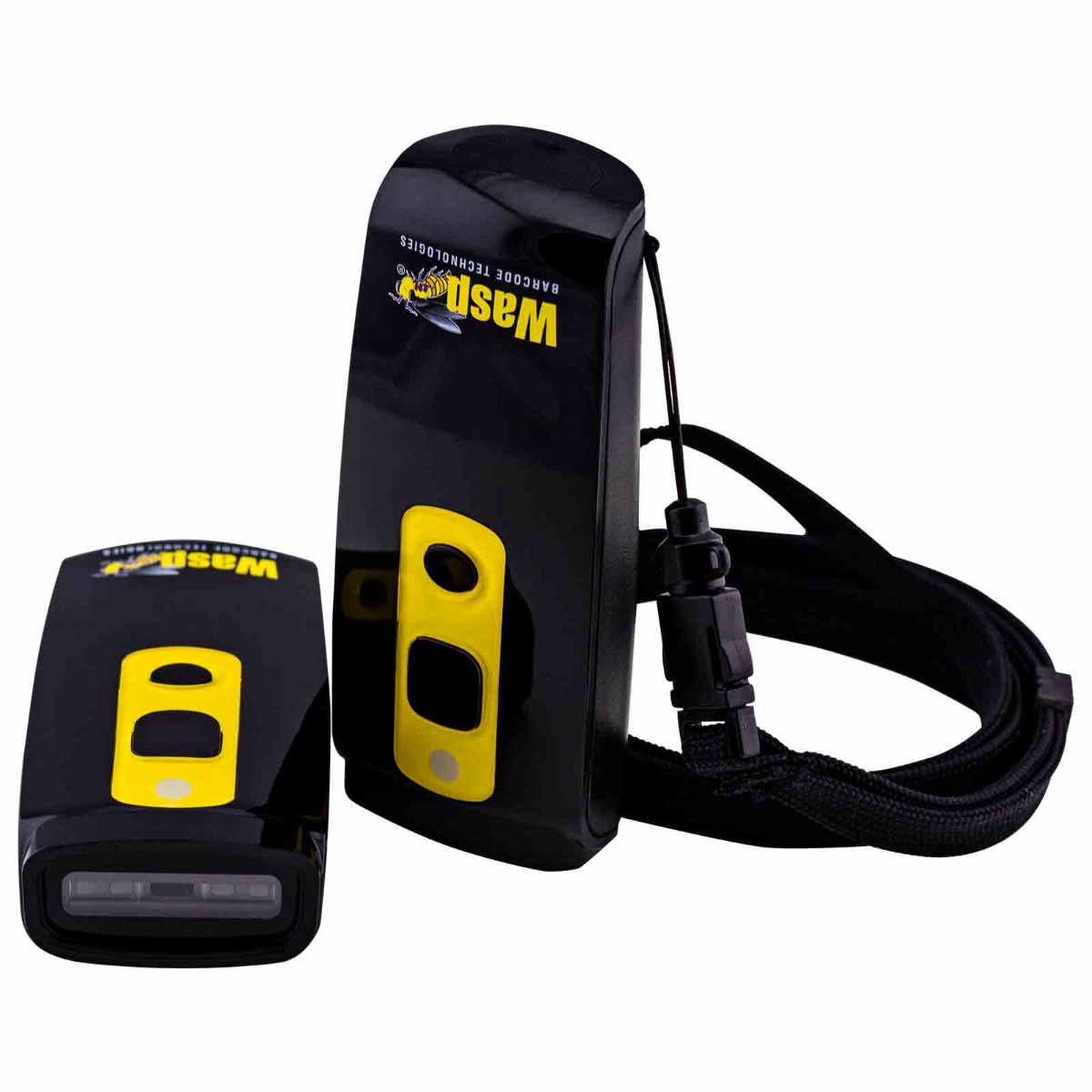

Wasp WWS250i 2D Pocket Barcode Scanner
Item Code: W-633809000201
Be the first to Review this Product
Specifications (PDF): Download Datasheet
Need Support: Click Here
$595.00 ex GST
Description
Wirelessly transmit barcoding data to your iOS, Android and Windows phone or mobile device using the WWS250i. It uses the latest Bluetooth which allows distances up to 10 metres to transmit data to your device!
Cost Effective and Integrated Solutions
Ready to Use, right out of the box software
Implementation, Training and Support
Hundreds of Installs Australia wide
Features
Features
| Basic Information | |
| Brand Name: | Wasp Barcode Technologies |
| Manufacturer Part Number: | W-633809000201 |
| Product Name: | Wasp WWS250i 2D Pocket Barcode Scanner |
| Product Type: | Bluetooth Barcode Scanner |
| Network and Communication | |
| Radio: | Bluetooth 2.1 + EDR (Class2) |
| Range: | 30ft./10m (line of sight) |
| Interface/Profile: | BT (SPP), BT (HID), USB (HID), USB (VCP) |
| Technical Information | |
| 1D Symbologies: | Codabar, Code 11, Code 32(PARAF), Code 128, Code 2 of 5, Code 39, Code 93, EAN/JAN-13, EAN/JAN 8, EAN-UCC Emulation, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, TCIF Linked Code 39, UPC-A, UPC E, GS1 Databar, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1, GS1codebar |
| 2D Symbologies: | Aztec Code, Codablock A, Codablock F, Data Matrix, EAN-UCC Composite Codes, MaxiCode, MicroPDF417, PDF417, QR Code, Micro QR Code, Chinese Sensible(Han Xin) code |
| Optical Features | |
| Light source: | White LED with CCT 5000k |
| Scan Rate: | 30 frames/sec |
| Resolution: | 5mil/0.127mm (Code39, PCS=90%) |
| Scan Angle: | Horizontal: 37.8° Vertical: 28.8° |
| Print Contrast: | 45% |
| D.O.F. (Environment: 800 lux): | 5 Mil Code39: 50 ~ 120mm, 20 Mil Code39: 75 ~ 355mm , 13 Mil UPC-A: 65 ~ 225mm, 6.7 Mil PDF417: 60 ~ 115mm, 10 Mil DataMatrix: 60 ~ 90mm, 20 Mil QR Code: 50 ~ 215mm |
| Physical Characteristics | |
| Dimension: | 1.67in W x 4.02 L x 0.85 H (W42.5xL102xH21.5 mm) |
| Weight: | 2.47oz. (70g) |
| Cable: | 5ft./1.5M (Micro USB cable) |
| Power Information | |
| Operation Voltage: | 3.7 VDC ± 5% |
| Working Current: | < 330mA |
| Standby Current: | < 45mA |
| Battery: | 3.7 V, 1000mAh, Lithium batter |
| Number of Scan (per full charge): | > 7600 scans, (1 scan/5 secs, Bluetooth connected) |
| Environmental Characteristics | |
| Operating Temperature: | -14°F-104°F (-10~40°C) |
| Storage Temperature: | -4°F-149°F (-20~65°C) |
| Humidity: | 0%~95% RH (Non-condensing) |
| Drop Durability: | 5ft./1.5M |
| Sealing: | IP55 |
| Miscellaneous | |
| EMC: | FCC – Part15B, Part15C, CE – EN 301489-1-1, EN 300328, EN 60950-1 |
| Safety: | IEC62471 |
Included Items
Included Items
| Package Contents: |
|
|
|
|
