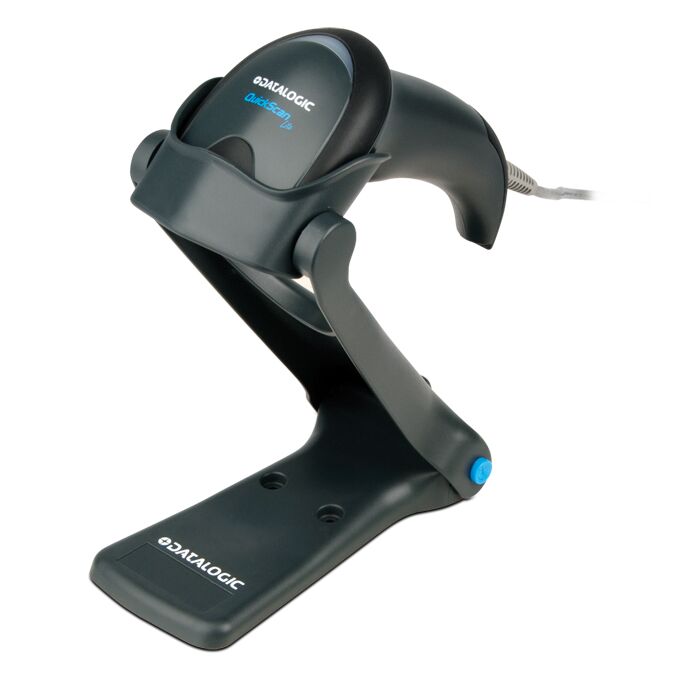

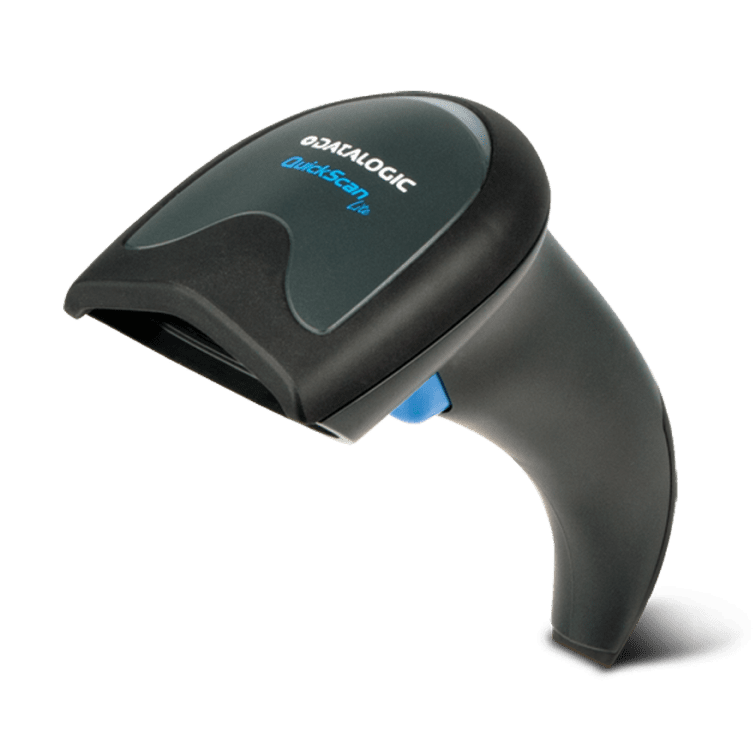

Datalogic QuickScan I Lite QW2400 2D Handheld USB Barcode Scanner

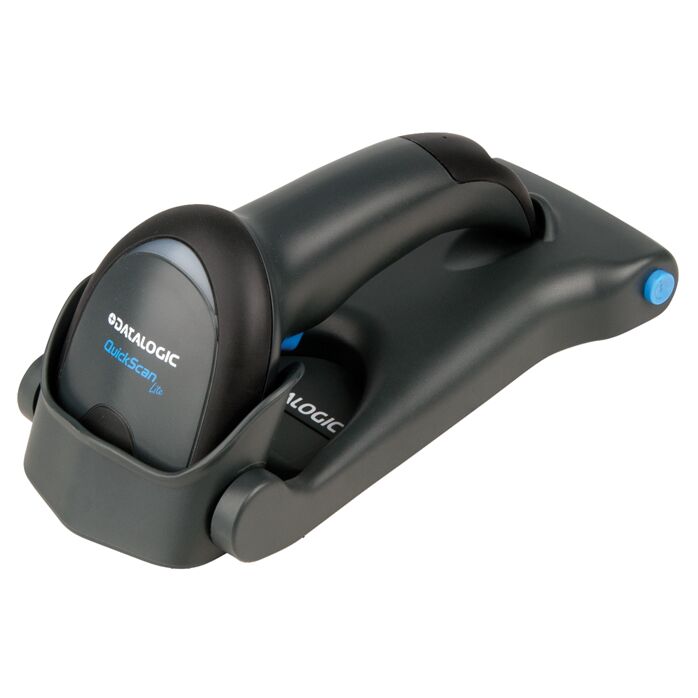

Datalogic QuickScan I Lite QW2400 2D Handheld USB Barcode Scanner - Image 3

Item Code: QW2420-BKK1S

Be the first to Review this Product

Specifications (PDF): Download Datasheet

Need Support: Click Here

$375.00 ex GST

Description

The QuickScan Lite QW2400 2D area imager is an entry level scanner specifically designed for reading long and truncated 1D codes and larger 2D codes from a close distance. The QW2400 imager has an extra-wide Field of View (FOV) which captures these challenging 1D and 2D codes at a nominal distance using different scan angles

Cost Effective and Integrated Solutions

Ready to Use, right out of the box software

Implementation, Training and Support

Hundreds of Installs Australia wide

Features

Basic Information
Brand Name:	Datalogic
Manufacturer Part Number:	QW2420-BKK1S
Product Name:	Datalogic QuickScan I Lite QW2400 2D Handheld USB Barcode Scanner
Product Type:	2D Handheld Area Imager Scanner

Interfaces/Ports
Host Interface:	USB

Technical Information
Barcode Dimension:	1D and 2D
Barcode (1D) Codes:	Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
2D Codes:	Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code
Postal Codes:	Australian Post; British Post; Canadian Post; China Post; Japanese Post; IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
Stacked Codes:	EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Imager Sensor:	Field of View: 48 x 37º (H x V) Wide VGA: 640 x 480 pixels
Light Source:	Aiming: 1 Blue LED; Illumination: White LED 350 – 770 nm
Motion Tolerance:	20 IPS
Print Contrast Ratio (Minimum):	20%
Reading Angle:	Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 65°
Reading Indicators:	Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
Resolution (Minimum):	Code 39: 4 mils: 0.102 mm PDF417: 6.6 mils: 0.168 mm QR/Data Matrix: 7.5 mils: 0.191 mm
Typical Depth of Field:	Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 5 mils: 0.5 to 12.5 cm / 0.2 to 4.9 in EAN/UPCA: 13 mils: 0.5 to 30.0 cm / 0.2 to 11.8 in PDF417: 6.6 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in Data Matrix: 10 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in QR: 20 mils: 1.0 to 14 cm / 0.4 to 5.5 in

Miscellaneous
Environmental Compliance:	Complies to China RoHS; Complies to EU RoHS
Ambient Light:	Up to 92,000 lux
Drop Resistance:	Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
ESD Protection (Air Discharge):	16kV
Humidity (Non-Condensing):	0-95%
Particulate and Water Sealing:	IP42
Temperature:	Operating: 0 to 50 °C / 32 to 122 °F Storage/Transport: -20 to 70 °C / -4 to 158 °F

Physical Characteristics
Colour:	Black
Dimensions (W x H x D):	7.1 x 17.1 x 6.6 cm / 2.8 x 6.7 x 2.6 in
Weight (Body):	120.0 g / 4.2 oz

Power Description
Current:	Operating (Typical): 170 mA @ 5 VDC Standby/Idle (Typical): 90 mA @ 5 VDC
Input Voltage:	5 VDC +/- 10%
